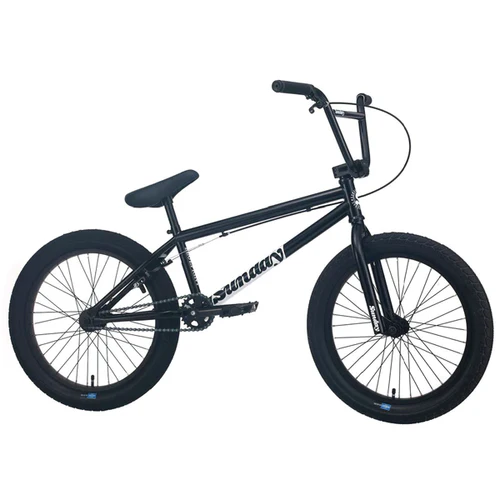

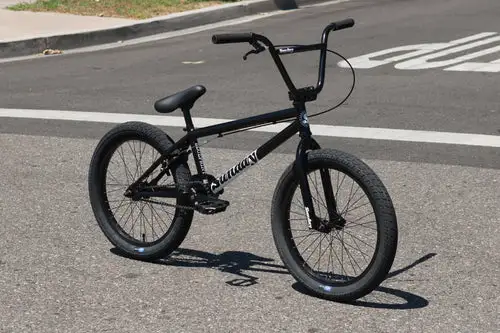

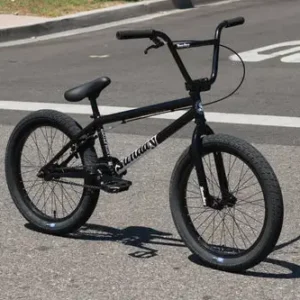

The Blueprint is a bike designed for new riders that features pro-level geometry to help them progress quickly.

This bike comes with hassle-free components such as Odyssey Springfield brakes, a Sunday Freeze stem, and Current 2.4″ tires to help you focus on what matters most: riding. This year’s Blueprint features an integrated head tube for increased durability, ease of assembly, and professional style points.

KEY FEATURES:

• Sunday Current v2 2.4″
• Odyssey Springfield Brakes
• FSA Integrated Headset
• Sunday Cornerstone Grips
• Sunday Freeze Front Load Stem
• KMC S1 Chain

SPECIFICATIONS

Frame: Sunday Blueprint, 20.5″ top tube, integrated 1-1/8″ head tube
Fork: Sunday Blueprint, 20″ fork w/ 2-piece steerer tube and welded pre-load
Handlebar: Sunday, 2-piece
Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated, 1-1/8″
Alloy Cap: FSA aluminum cap
Brake Lever: Aluminum, U-brake compatible
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Sunday Cornerstone
Seat: Sunday Badge, seat and post combo
Seat Post: Integrated
Seat Clamp: Integrated

Sprocket: Sunday S-Logo, 25T, steel
Cranks: 160mm, 3-piece, chromoly
BB Parts: Loose-ball, American, 19mm
Pedals: Wellgo platform, plastic
Rims: P-7X aluminum, 20″, 36H
Front Hub: Sunday, 36H, low-flange, loose-ball, 3/8″ axle
Rear Hub: Sunday, 36H,14mm axle w/ 9t Driver
Spokes: 14g steel, black
Tires: Sunday Current, 20 x 2.4″ (F & R)
Chain: KMC S1
Approx. Weight: 26lbs (with brakes)

FRAME GEOMETRY

Top Tube Length: 20.5″
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5″
Standover: 8.75″

HANDLEBAR GEOMETRY

Rise: 9″
Width: 28.5″
Backsweep: 12°
Upsweep: 4°

*Specifications are subject to change without notice.
